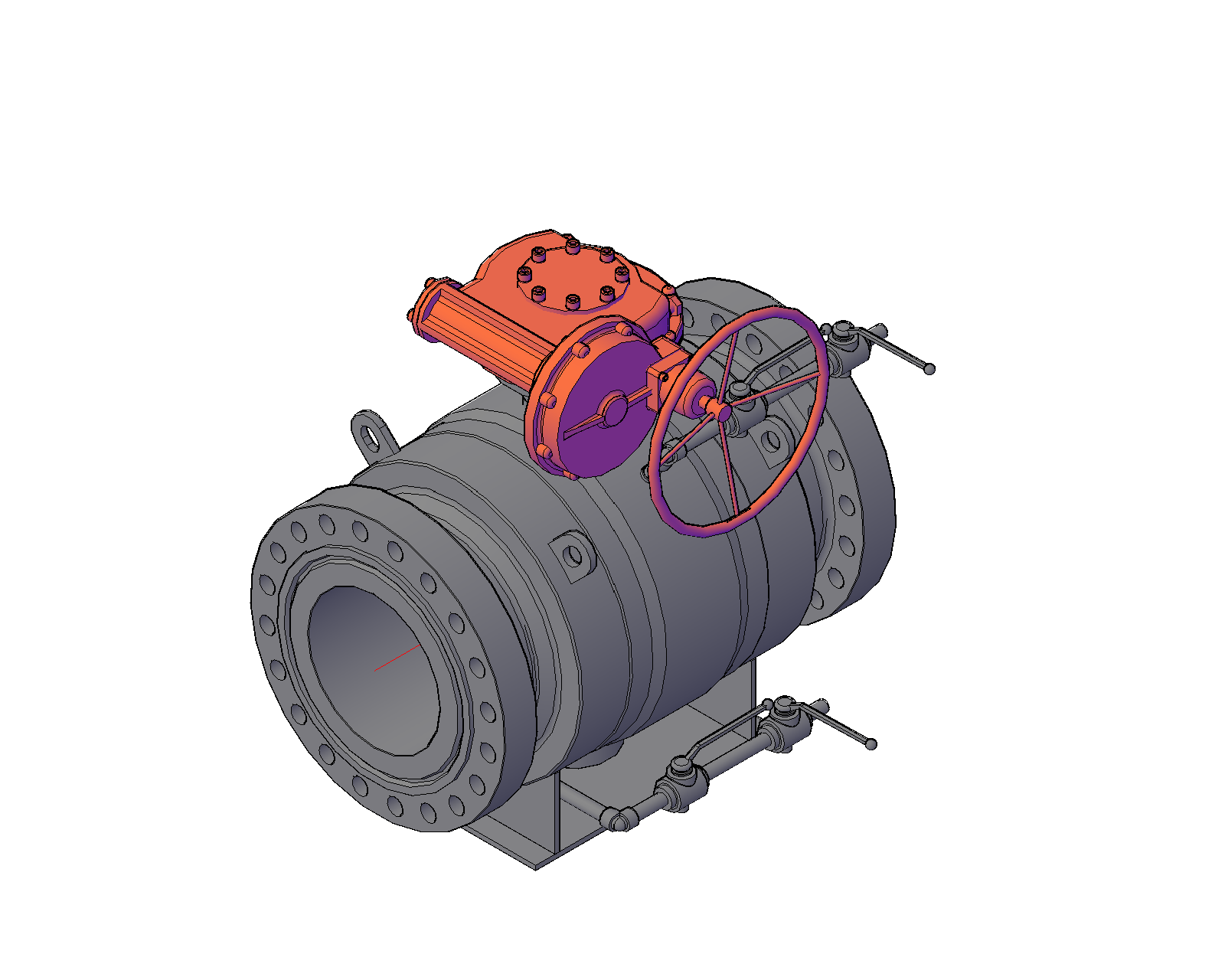

Download a highly detailed Class 900 Ball Valve DN500 RTJ 3D Model in DWG format—ideal for piping engineers, plant designers, and industrial equipment planners. This CAD block represents a full-bore high-pressure ball valve with a DN500 (20-inch) nominal diameter and RTJ (Ring Type Joint) flange connection, suitable for oil & gas, petrochemical, and power generation applications. The model includes body geometry, handle or actuator interface, and flange bolt patterns. Compatible with AutoCAD, it supports precision layout, procurement documentation, and system integrity planning.
Class 900 Ball Valve DN500 RTJ | 3D DWG Download Free
